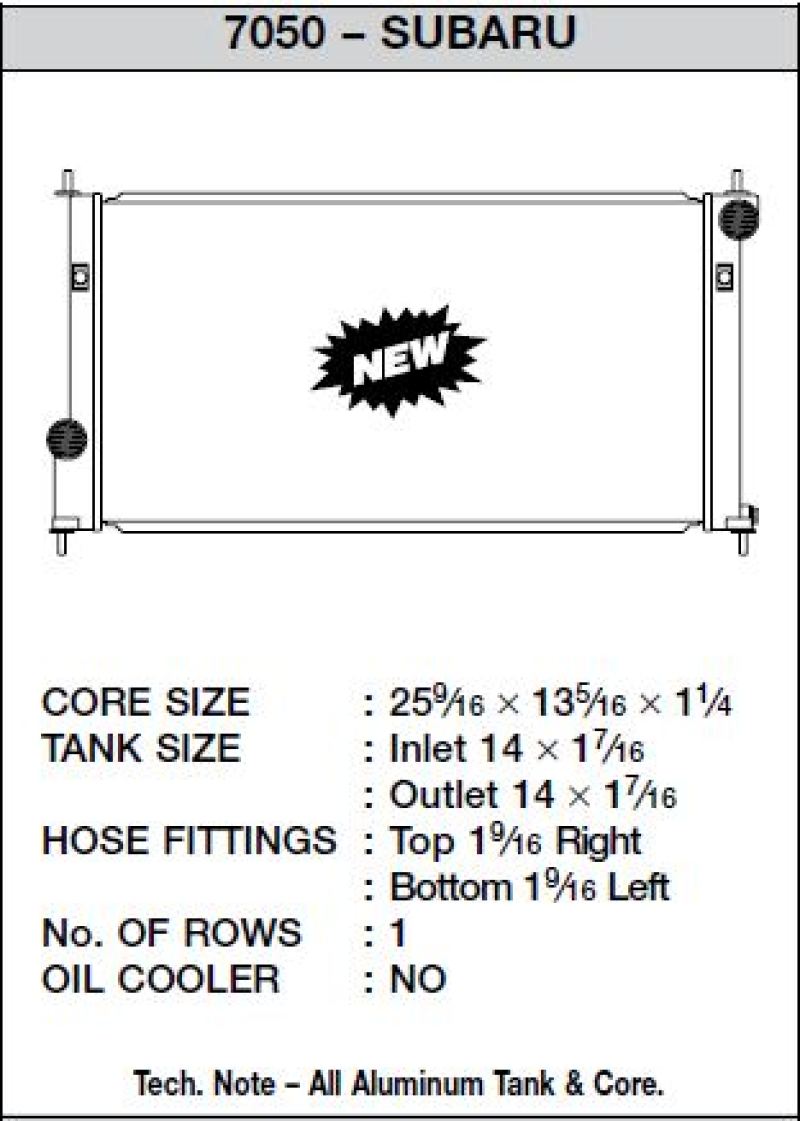

Technical Drawing
Photo - out of package
Photo - out of package
Photo - out of package
Technical Drawing
Logo Image
Logo Image
Load image into Gallery viewer, Photo - Primary
Load image into Gallery viewer, Photo - Primary
Load image into Gallery viewer, Photo - out of package
Load image into Gallery viewer, Features and Benefits
Load image into Gallery viewer, Photo - out of package
Load image into Gallery viewer, Features and Benefits
Load image into Gallery viewer, Photo - out of package
Load image into Gallery viewer, Photo - out of package
Load image into Gallery viewer, Photo - out of package
Load image into Gallery viewer, Technical Drawing
Load image into Gallery viewer, Photo - out of package
Load image into Gallery viewer, Photo - out of package
Load image into Gallery viewer, Photo - out of package
Load image into Gallery viewer, Technical Drawing
Load image into Gallery viewer, Logo Image
Load image into Gallery viewer, Logo Image

Have Questions?

914.334.2201 Ask an Expert

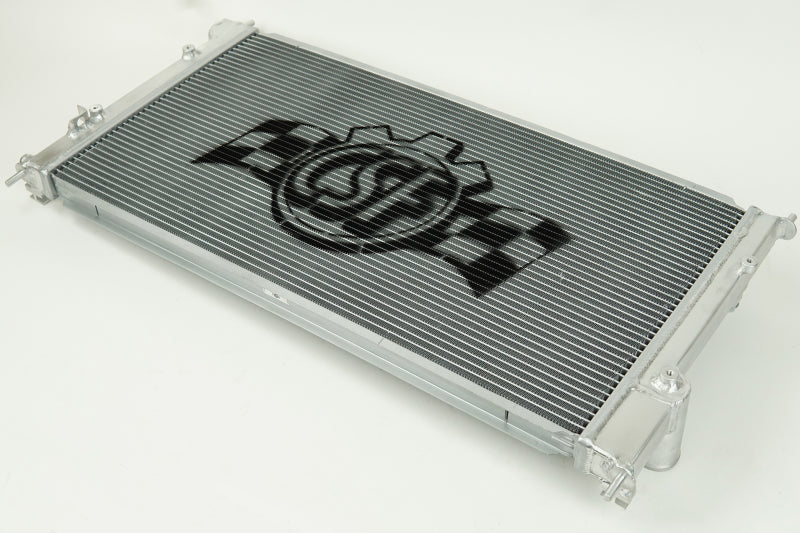

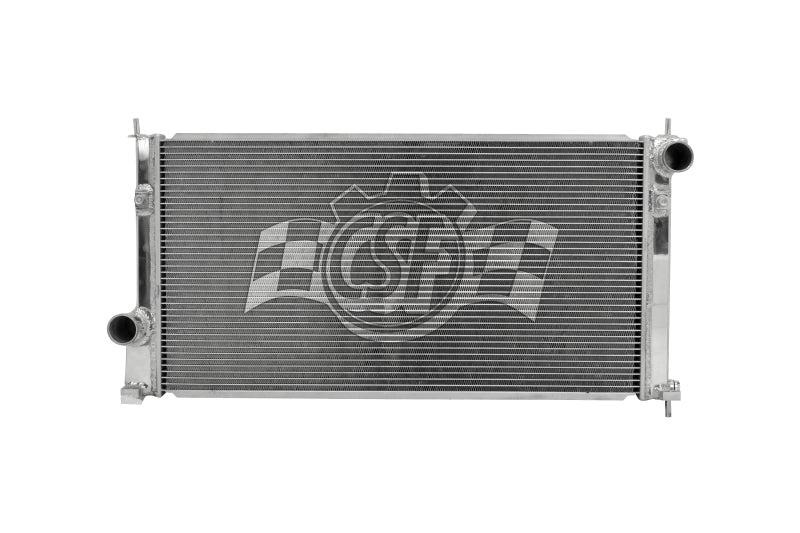

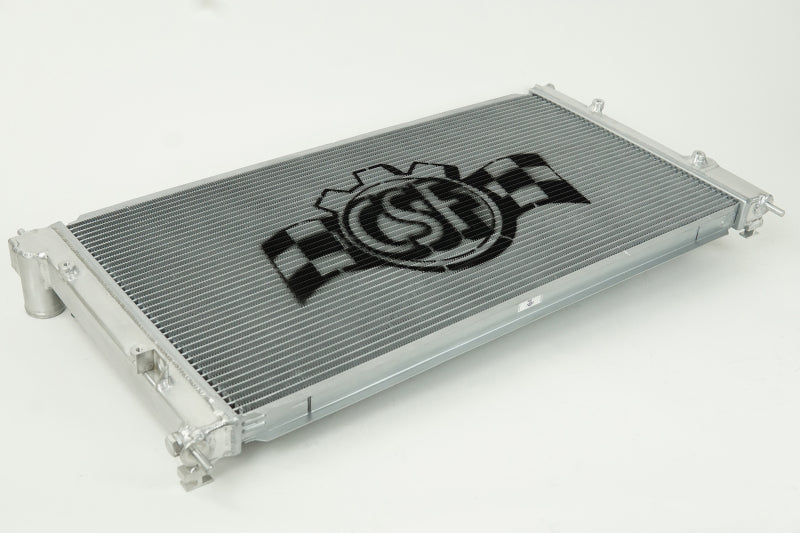

CSF 13-16 Scion FR-S / 13-20 Toyota 86 / 22+ Toyota GR86 / 2013+ Subaru BRZ Radiator

2 sold in last 8 hours
CSF
Out of stock
$329.00 $309.99
CSF has over 5 decades of experience manufacturing radiators. So when it comes to...
customers are viewing this product
Torque Solution Exhaust Wrap Universal 1inx50ft - Volcanic Rock
Torque Solution Exhaust Wrap Universal 1inx50ft - Volcanic Rock
$29.99
Mishimoto 1967-1969 Chevrolet Camaro 3-Row Aluminum Radiator
Mishimoto 1967-1969 Chevrolet Camaro 3-Row Aluminum Radiator
$473.30 $355.99
CSF 13-16 Scion FR-S / 13-20 Toyota 86 / 22+ Toyota GR86 / 2013+ Subaru BRZ Radiator
Description

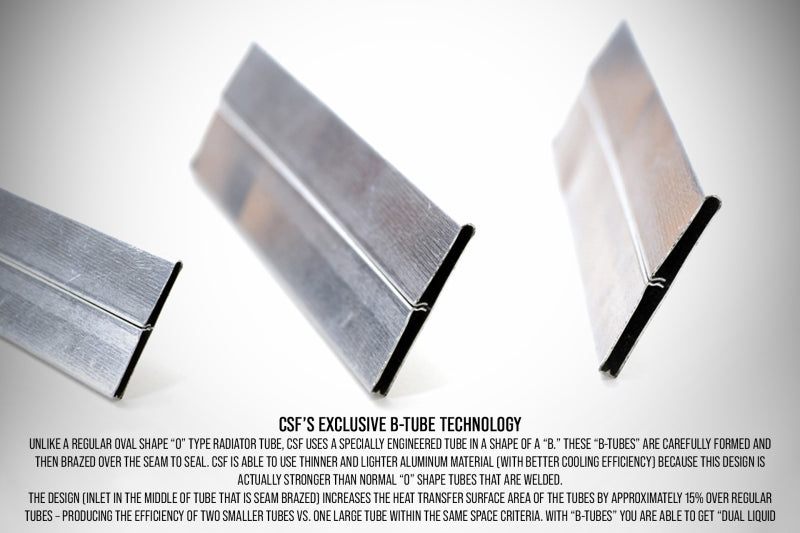

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your FRS/BRZ/86/GR86 running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

This Part Fits:

Year Make Model Submodel
2013-2016 Scion FR-S Base
2013-2020,2022-2024 Subaru BRZ Limited
2013-2019,2022-2024 Subaru BRZ Premium
2015 Subaru BRZ Series.Blue
2019 Subaru BRZ Series.Gray
2016 Subaru BRZ Series.HyperBlue
2017 Subaru BRZ Series.Yellow
2018,2020 Subaru BRZ TS
2017-2020 Toyota 86 Base
2018-2020 Toyota 86 GT
2020 Toyota 86 Hakone Edition
2017 Toyota 86 Special Edition
2019 Toyota 86 TRD Special Edition
2023 Toyota GR86 10th Anniversary Special Edition
2022-2023 Toyota GR86 Base
2022-2023 Toyota GR86 Premium
Read More
Read Less
Returns Policy

Returns are accepted within 21 days of purchase. Item must be in original condition and packaging. Any attempted installs / open parts will be declined. Once the item is received it will be inspected and a credit will be issued accordingly. All returns are subject to a 15% restocking fee. Note: No returns are accepted for special order, custom orders, or services.

×
